UNEX® SW 10’L 18"W Straight Galvanized Steel Skatewheel Conveyor – 16" BF – 16" WPF
Original price was: $474.95.$91.99Current price is: $91.99.
- Risk-Free Shopping with Returns
- Unbeatable Quality Guaranteed
- Shop the Best Quality Online
- Your satisfaction is 100% guaranteed.

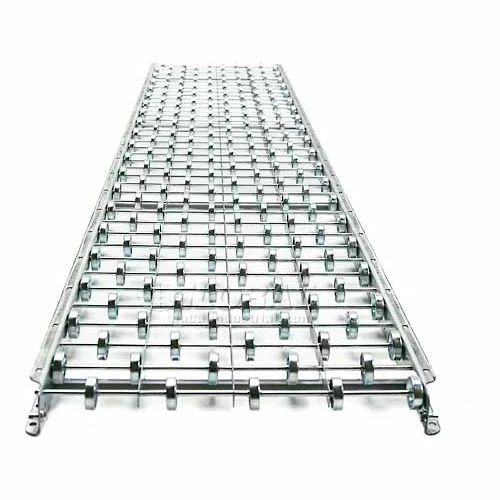

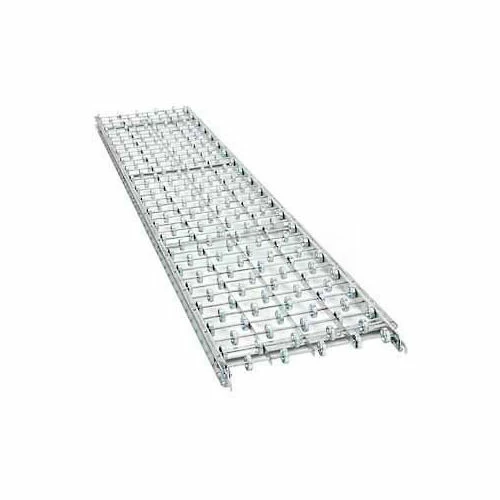

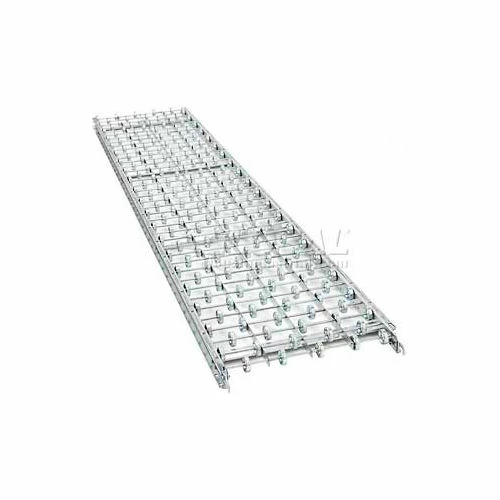

Gravity Skatewheel Conveyor is ideally suited to convey lightweight packages and where operations require portable or temporary conveyor lines such as warehousing or shipping areas. Zinc-plated steel wheels and galvanized steel frame for corrosion resistance or mill finish aluminum wheels and frame for light weight. Hook and stud couplers for connecting portable sections.
- 50 lb wheel capacity (steel) or 25 lb wheel capacity (aluminum)
- Up to 210 lbs per foot load capacity (steel) or 120 lbs per foot (aluminum)
- 1/4″ diameter carbon steel axles, threaded with locknut, spaced on 3″ centers
- 1-15/16″ diameter zinc-plated steel wheels
- C-Channel 2.5″ high by 1″ leg (7/8″ for carton flow) by 12 ga. galvanized steel channel frame
| Skate Wheel Diameter | 1-15/16 in |
|---|---|
| Color Family | Silver |
| Brand | Unex |
| Conveyor Section | Straight |
| Manufacturers Part Number | 18SWGS16X10 |
| Material | Galvanized Steel |
| Series | SW |
| Wheels per Foot | 16 |
| Type | Straight Conveyor |
| Weight | 83 lbs |
| Assembly Required | Assembled |
| Length | 10 ft |
| Width | 18 in |
| Axle Center | 3 in |
| Weight Capacity | 60 per Ft. |
| Between Frame Width | 16 in |
| Warranty | 2 yr |
