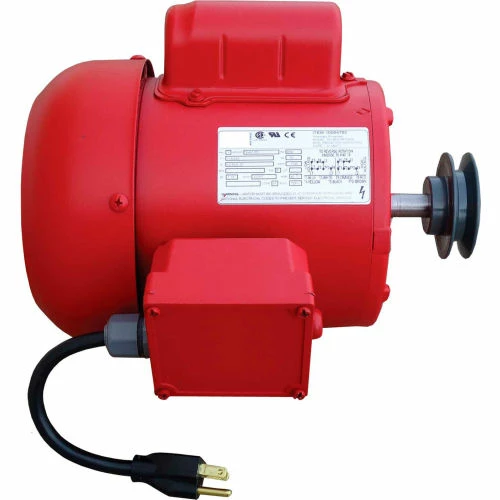

T.R. Metal Crafters Hayrite 3/4 Horsepower Drive Kit HST-51A for Extra Heavy Duty Hay Bale Elevator 18’L to 36’L

Designed for use with Hayrite Bale Handling Systems up to 40 ft.

Features:

• Prewired – save hiring a certified electrician.
• Rated: Farm Duty (totally enclosed, fan cooled with manual reset overload protector).
• Horsepower: 3/4 HP
• Shaft Diameter: 5/8 in.
• Frame Type: 56
• Voltage: 115/230V (wired for 115V)
• Amperage: 10.6/5.3A
• Motor Phase: Single
• RPM: 1,745
• Cord: 14 GA x 7″L
• Pulley: AK28 x 5/8″, Cast-Iron
• Frame: 56
• Phase: Single
• Hertz: 60
• Duty: Continuous
• Service Factor: 1.15
• Ambient Temp Celsius: 40°C
• Opposite End Bearing: Bearing Part # 6202
• Drive End Bearing Size: Bearing Part # 6203
• FL Efficiency: 68.5
• Power-Factor: 67
• C-Dimension Inches: 13-1/8
• FL Amps: 5.3
