Omni Metalcraft Steel Skate Wheel Conveyor Straight Section WSHS3-12-16-10-LL
Original price was: $390.95.$97.99Current price is: $97.99.
- Risk-Free Shopping with Returns
- Unbeatable Quality Guaranteed
- Shop the Best Quality Online
- Your satisfaction is 100% guaranteed.

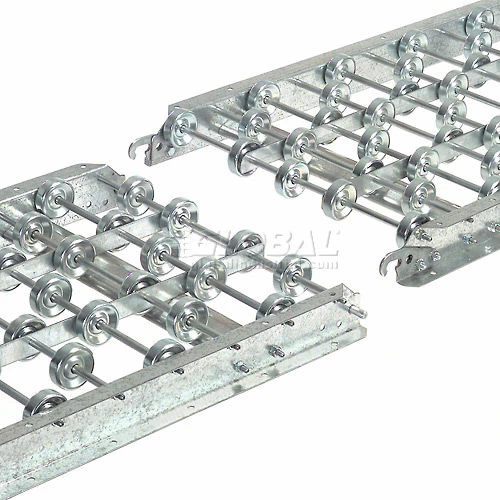

Skate wheel conveyors offer smooth movement of multi-sized material. 2″ diameter ball bearing plated wheels and 3″ axle centers. 2-1/2″ x 1″ x 12 gauge galvanized steel channel frame with hook and rod coupling is designed for maximum strength to move the heaviest items. To increase the capacity of 10 ft. sections add center leg support and capacity is equal to two 5 ft. lengths. Capacity is 65 lbs. per wheel.
| Skate Wheel Diameter | 2 in |
|---|---|
| Weight | 71 lbs |
| Between Frame Width | 10 in |
| Weight Capacity | 350 lbs |
| Inside Radius | — in |
| Width | 12 in |
| Length | 10 ft |
| Assembly Required | Assembled |
| Type | Straight Conveyor |
| Wheels per Foot | 16 |
| Material | Steel |
| Manufacturers Part Number | WSHS3-12-16-10-LL |
| Conveyor Section | Straight |
| Brand | Omni Metalcraft |
