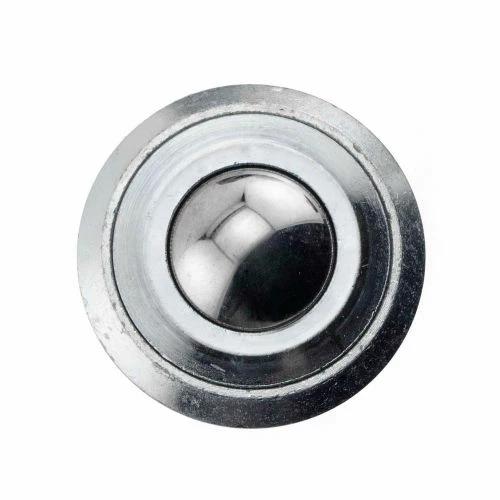

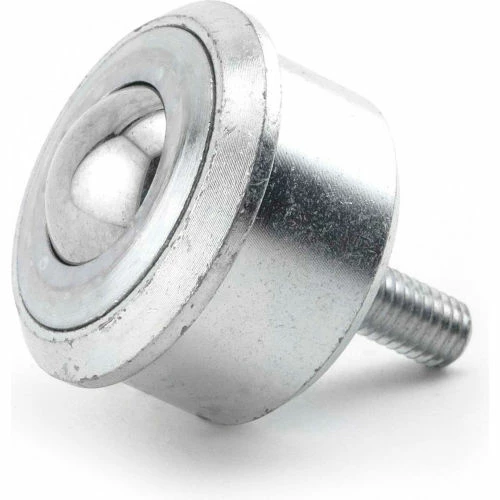

Hudson Bearings Hudson SHDBT-1 3/16 CS/SS HD 1-3/16" Stainless Steel Ball 3/16" Stud in Carbon Steel Housing
Original price was: $85.95.$60.17Current price is: $60.17.
- Risk-Free Shopping with Returns
- Unbeatable Quality Guaranteed
- Shop the Best Quality Online
- Your satisfaction is 100% guaranteed.

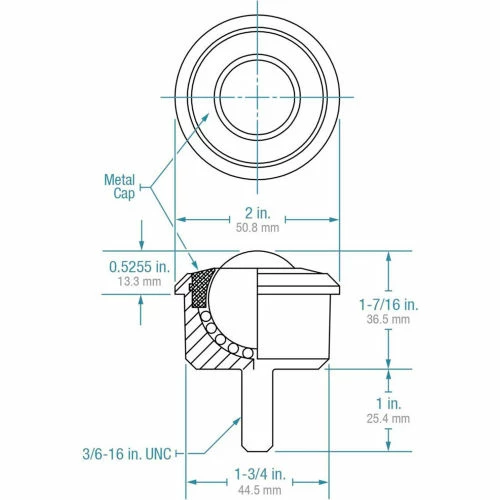

Hudson Bearings is an innovative domestic manufacturer of ball transfers. This heavy duty Stud Mounted unit is fully machined from solid steel and is hardened and plated with a metal cap. Housing options include stainless steel. Main and support ball options include stainless, nylon, phenolic, and Delrin. Stud mounted transfers can be used in either ball up or down position.
| Weight | 0.8 lbs |
|---|---|
| Ball Width Range | 2 in |
| Ball Diameter | 1-3/16 in |
| Mounting Bolt Size | 1 x 3/16-16 in |
| Weight Capacity | 750 lbs |
| Height | 2-7/16 in |
| Width | 2 in |
| Assembly Required | Assembled |
| Type | Replacement Transfer Ball |
| Color Family | Silver |
| Material | Stainless Steel |
| Manufacturers Part Number | SHDBT-1 3/16 CS/SS |
| Housing Material | Carbon Steel |
| Brand | Hudson Bearings |
