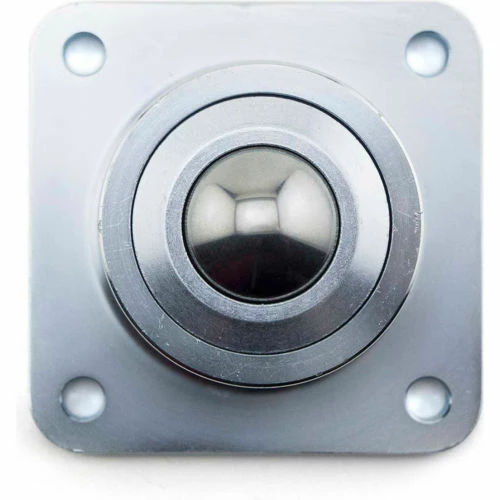

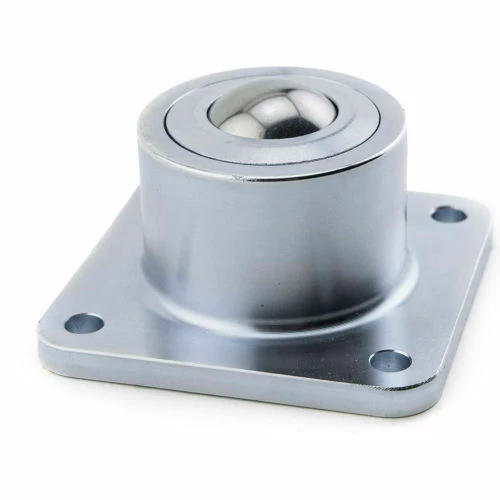

Hudson Bearings is an innovative domestic manufacturer of ball transfers. This Flange-Mounted unit is fully machined from solid steel and is hardened and plated with a metal cap. Primary use includes heavy pipe manufacturing. Housing options include stainless steel. Main and support ball options include stainless steel.
Hudson Bearings Hudson FHDBTM-1-3/16 CS/SS HD 1-3/16" Stainless Steel Ball 4 Hole Flange Carbon Steel Housing
$167.95 Original price was: $167.95.$98.99Current price is: $98.99.
- Risk-Free Shopping with Returns
- Unbeatable Quality Guaranteed
- Shop the Best Quality Online
- Your satisfaction is 100% guaranteed.

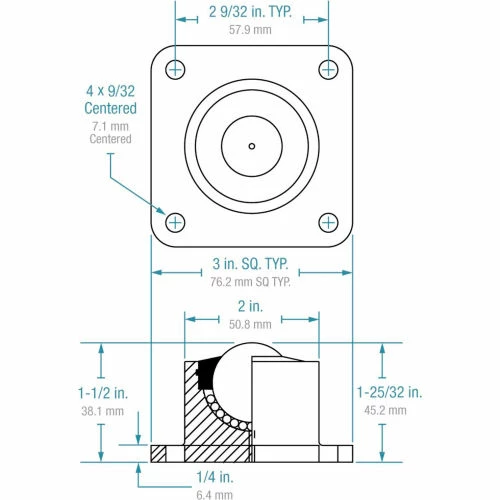

| Mounting Bolt Hole Diameter | 3/8 in |
|---|---|
| Weight | 1.1 lbs |
| Ball Width Range | 3 in |
| Ball Diameter | 1-3/16 in |
| Weight Capacity | 750 lbs |
| Height | 1-4/5 in |
| Width | 3 in |
| Length | 3 in |
| Assembly Required | Assembled |
| Type | Replacement Transfer Ball |
| Color Family | Silver |
| Material | Stainless Steel |
| Manufacturers Part Number | FHDBTM-1-3/16 CS/SS |
| Housing Material | Carbon Steel |
| Brand | Hudson Bearings |
