One inch stainless steel main ball rotates on a bed of eighty 1/8 inch stainless steel support balls. Support cup and cover are hardened and zinc plated carbon steel. Hudson Bearings is an innovative domestic manufacturer of ball transfers. Flange-Mounted units feature a hardened and zinc plated mounting cup and a foam seal. Housing options include stainless steel with option for felt seal. Main and support ball options include stainless, nylon, phenolic, and delrin. Flange mounted transfers can be used in either ball up or down position.

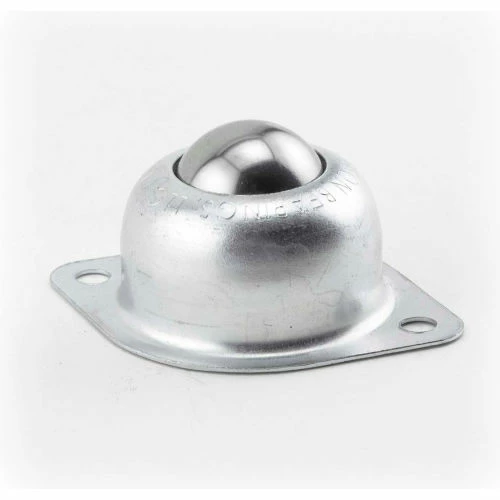

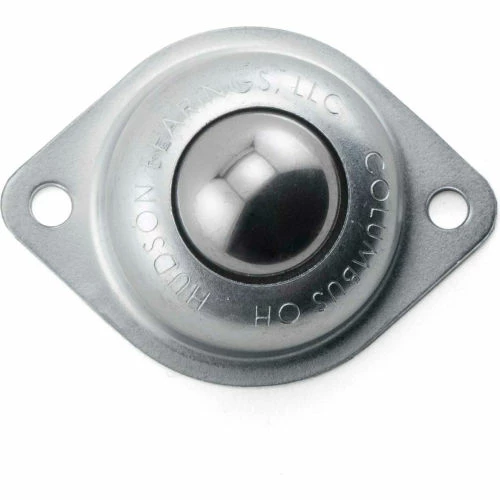

Hudson Bearings Hudson 1" Stainless Steel Main Ball 2 Hole Flange Carbon Steel Housing BT-1CS/SS – 2"W
$16.50 Original price was: $16.50.$11.55Current price is: $11.55.
- Risk-Free Shopping with Returns
- Unbeatable Quality Guaranteed
- Shop the Best Quality Online
- Your satisfaction is 100% guaranteed.

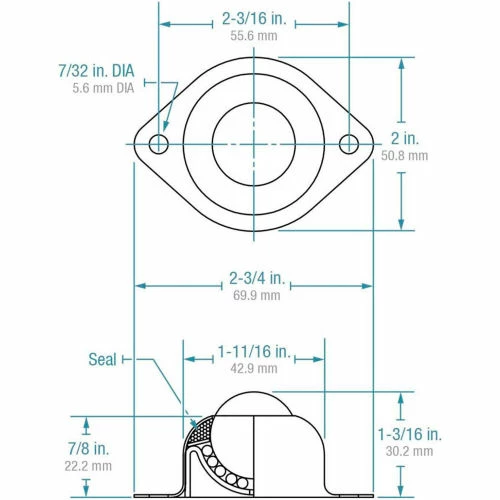

| Mounting Bolt Hole Diameter | 7/32 in |
|---|---|
| Weight | 0.32 lbs |
| Ball Width Range | 2 in |
| Ball Diameter | 1 in |
| Weight Capacity | 75 lbs |
| Bolt Spacing | 2-3/16 in |
| Height | 1-3/16 in |
| Width | 2 in |
| Length | 2-3/4 in |
| Assembly Required | Assembled |
| Type | Replacement Transfer Ball |
| Color Family | Silver |
| Material | Stainless Steel |
| Manufacturers Part Number | BT-1CS/SS |
| Housing Material | Carbon Steel |
| Brand | Hudson Bearings |
