Hudson Bearings 1" Nylon Main Ball with Two Hole Flange Carbon Steel Housing NBT-1CS – 2"W
Original price was: $10.75.$7.53Current price is: $7.53.
- Risk-Free Shopping with Returns
- Unbeatable Quality Guaranteed
- Shop the Best Quality Online
- Your satisfaction is 100% guaranteed.

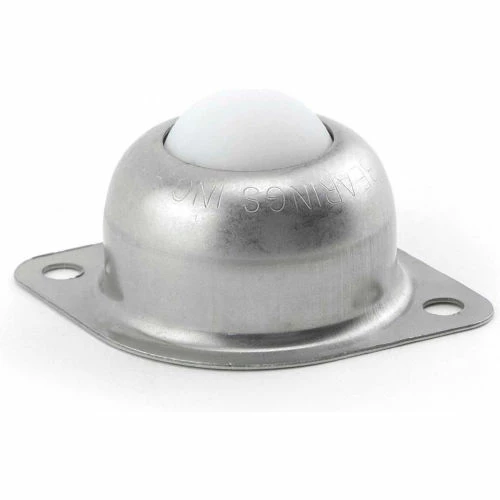

One inch nylon main ball rotates on a bed of eighty 1/8 inch support balls. Support cup is hardened and plated. The cover is also hardened and plated to resist rust. Hudson Bearings is an innovative domestic manufacturer of ball transfers. Flange-Mounted units feature a hardened and zinc plated mounting cup and a foam seal. Housing options include stainless steel with option for felt seal. Main and support ball options include stainless, nylon, phenolic, and delrin. Flange mounted transfers can be used in either ball up or down position.

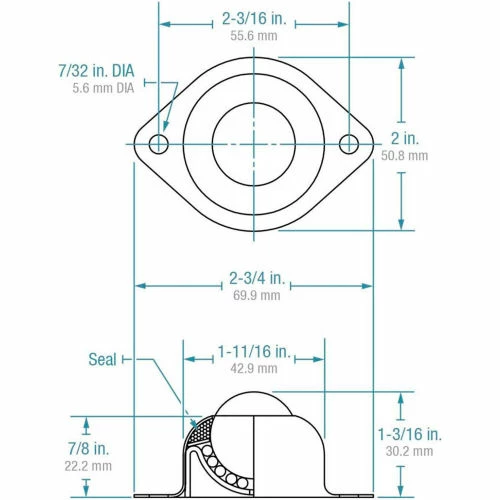

| Mounting Bolt Hole Diameter | 7/32 in |
|---|---|
| Weight | 0.18 lbs |
| Ball Width Range | 2 in |
| Ball Diameter | 1 in |
| Weight Capacity | 75 lbs |
| Bolt Spacing | 2-3/16 in |
| Height | 1-3/16 in |
| Width | 2 in |
| Length | 2-3/4 in |
| Assembly Required | Assembled |
| Type | Replacement Transfer Ball |
| Color Family | Silver |
| Material | Nylon |
| Manufacturers Part Number | NBT-1CS |
| Housing Material | Carbon Steel |
| Brand | Hudson Bearings |
