One inch nylon main ball rotates on a bed of eighty 1/8 inch support balls. Support cup is hardened and plated. The cover is also hardened and plated to resist rust. Hudson Bearings is an innovative domestic manufacturer of ball transfers. The Low-Profile ball transfer is designed to be recessed into a 1-3/4″ hole. Support cup is hardened and plated. Housing and ball options include stainless, nylon, phenolic, and delrin.
Hudson Bearings 1" Nylon Main Ball 2 Hole Flange Carbon Steel Housing NLPBT-1CS
$15.75 Original price was: $15.75.$11.03Current price is: $11.03.
SKU: Hudson Bearings WBB536696 Categories: Ball Transfer Conveyors, Conveyors Tags: Assembled, Carbon Steel, Hudson Bearings, Material Handling, NLPBT-1CS, Nylon, Replacement Transfer Ball, Silver
- Risk-Free Shopping with Returns
- Unbeatable Quality Guaranteed
- Shop the Best Quality Online
- Your satisfaction is 100% guaranteed.

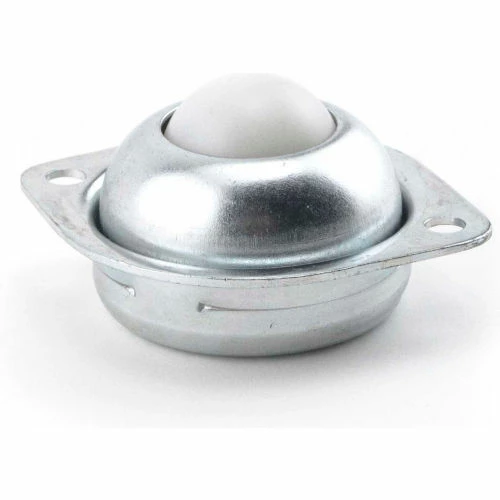

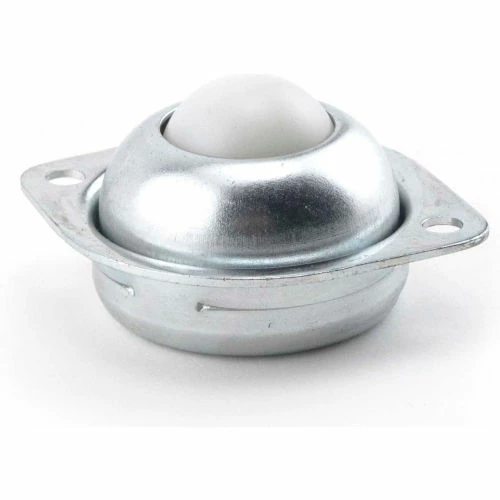

Hudson Bearings 1″ Nylon Main Ball with Two Hole Flange Carbon Steel Housing

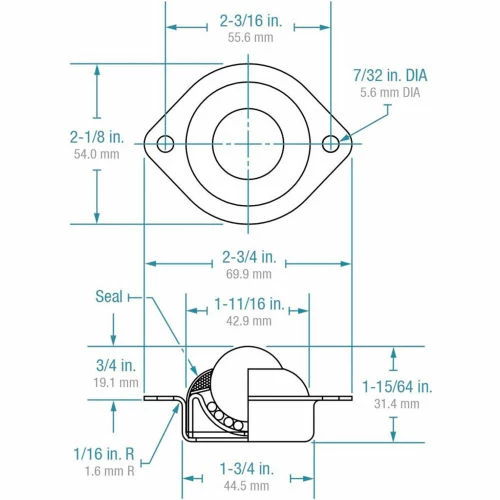

| Mounting Bolt Hole Diameter | 7/32 in |
|---|---|
| Weight | 0.24 lbs |
| Ball Width Range | 2 in |
| Ball Diameter | 1 in |
| Weight Capacity | 75 lbs |
| Bolt Spacing | 2-3/16 in |
| Height | 1-15/64 in |
| Width | 2-1/8 in |
| Length | 2-3/4 in |
| Assembly Required | Assembled |
| Type | Replacement Transfer Ball |
| Color Family | Silver |
| Material | Nylon |
| Manufacturers Part Number | NLPBT-1CS |
| Housing Material | Carbon Steel |
| Brand | Hudson Bearings |
