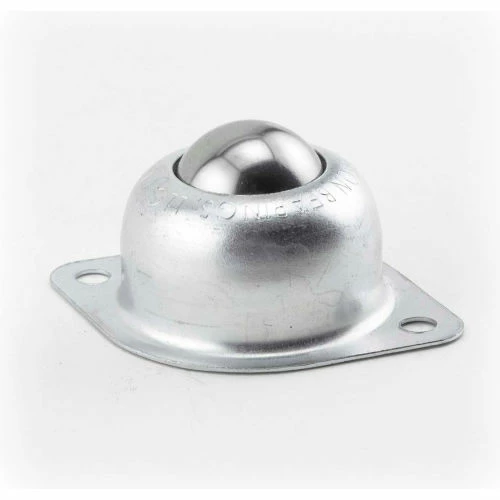

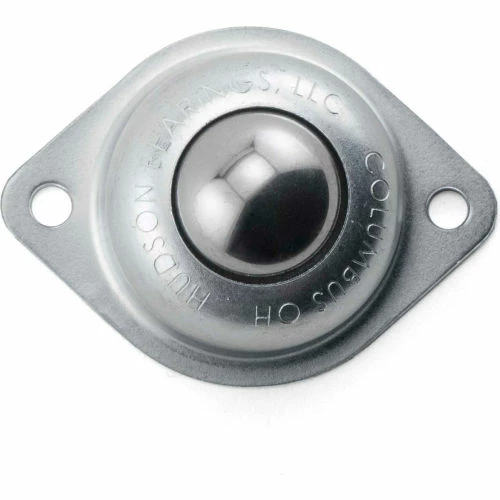

Hudson Bearings 1" Carbon Steel Main Ball with 2 Hole Flange Carbon Steel Housing BT-1CS – 2"W – Pkg Qty 25
Original price was: $76.25.$53.38Current price is: $53.38.
- Risk-Free Shopping with Returns
- Unbeatable Quality Guaranteed
- Shop the Best Quality Online
- Your satisfaction is 100% guaranteed.
One inch carbon steel main ball rotates on a bed of eighty 1/8 inch support balls. Support cup is hardened and plated. The cover is also hardened and plated to resist rust. Hudson Bearings is an innovative domestic manufacturer of ball transfers. Flange-Mounted units feature a hardened and zinc plated mounting cup and a foam seal. Housing options include stainless steel with option for felt seal. Main and support ball options include stainless, nylon, phenolic, and delrin. Flange mounted transfers can be used in either ball up or down position.
Note: Sold in Packages of 25.
| Mounting Bolt Hole Diameter | 7/32 in |
|---|---|
| Assembly Required | Assembled |
| Housing Material | Carbon Steel |
| Manufacturers Part Number | BT-1CS |
| Package Quantity | 25 |
| Material | Carbon Steel |
| Color Family | Silver |
| Type | Replacement Transfer Ball |
| Length | 2-3/4 in |
| Weight | 0.32 lbs |
| Width | 2 in |
| Height | 1-3/16 in |
| Bolt Spacing | 2-3/16 in |
| Weight Capacity | 75 lbs |
| Ball Diameter | 1 in |
| Ball Width Range | 2 in |
| Brand | Hudson Bearings |
