Sale!

Hudson Bearings 1-1/2" Nylon Ball Carbon Steel Low-Profile Flying Saucer Ball Transfer NFSBT-1 1/2CS

Original price was: $34.95.Current price is: $24.47.

SKU: Hudson Bearings WBB536752 Categories: Ball Transfer Conveyors, Conveyors Tags: Assembled, Carbon Steel, Hudson Bearings, Material Handling, NFSBT-1 1/2CS, Nylon, Replacement Transfer Ball, Silver

Risk-Free Shopping with Returns
Unbeatable Quality Guaranteed
Shop the Best Quality Online
Your satisfaction is 100% guaranteed.

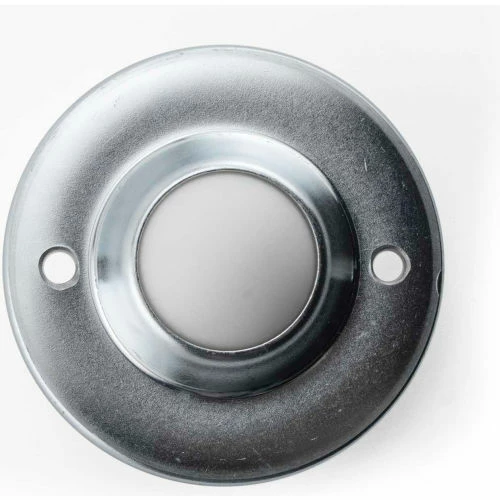

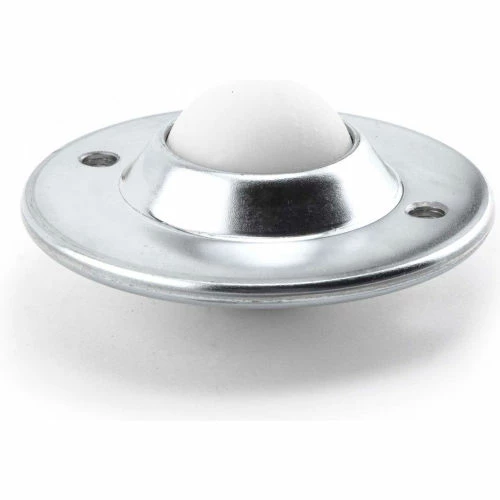

Hudson Bearings 1-1/2″ Nylon Ball Carbon Steel Low Profile Flying Saucer Ball Transfer

1-1/2 inch nylon main ball rotating on carbon steel 3/16 inch support balls in a precision formed carbon steel housing. Hudson Bearings is an innovative domestic manufacturer of ball transfers. Flange-Mounted units feature a hardened and zinc plated mounting cup and a foam seal. Housing options include stainless steel with option for felt seal. Main and support ball options include stainless, nylon, phenolic, and delrin. Flange mounted transfers can be used in either ball up or down position.

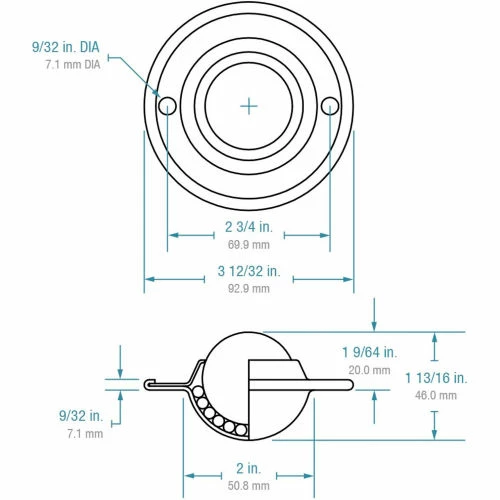

Dimension F	2-3/4"
Width	3-21/32 in
Housing Material	Carbon Steel
Manufacturers Part Number	NFSBT-1 1/2CS
Material	Nylon
Color Family	Silver
Type	Replacement Transfer Ball
Assembly Required	Assembled
Dimension E	2"
Dimension D	9/32"
Weight	1.15 lbs
Dimension G	9/32 in
Height	1-13/16 in
Dimension B	1-13/16"
Dimension A	3-21/32"
Weight Capacity	200 lbs
Ball Diameter	1-1/2 in
Dimension C	1-9/64 in
Ball Width Range	3 in
Brand	Hudson Bearings
