Hudson Bearings 1-1/2" Carbon Steel Main Ball 4 Hole Flange Carbon Steel Housing BT-1 1/2CS

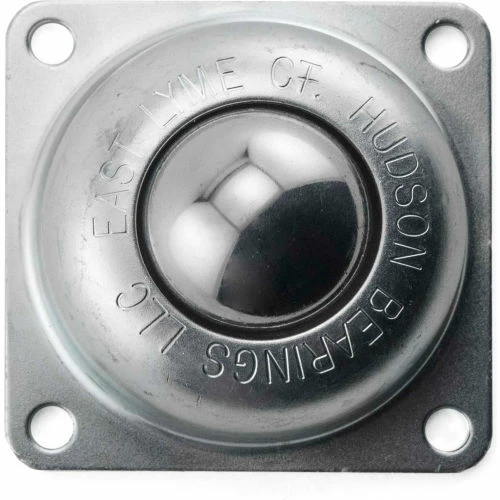

Hudson Bearings 1-1/2" Carbon Steel Main Ball 4 Hole Flange Carbon Steel Housing BT-1 1/2CS - Image 2

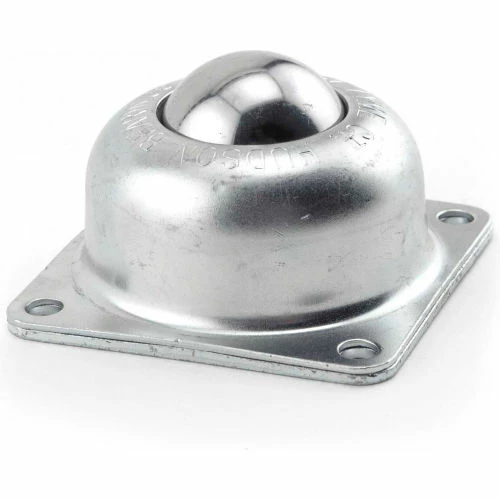

Hudson Bearings 1-1/2" Carbon Steel Main Ball 4 Hole Flange Carbon Steel Housing BT-1 1/2CS - Image 3

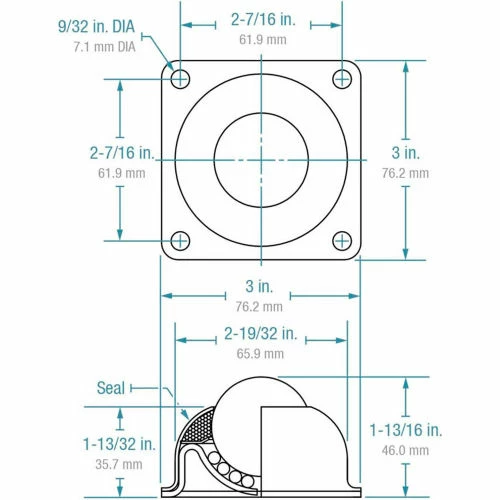

Hudson Bearings 1-1/2" Carbon Steel Main Ball 4 Hole Flange Carbon Steel Housing BT-1 1/2CS - Image 4

Hudson Bearings 1-1/2" Carbon Steel Main Ball 4 Hole Flange Carbon Steel Housing BT-1 1/2CS

Original price was: $18.25.Current price is: $12.78.

SKU: Hudson Bearings WBB536690 Categories: Ball Transfer Conveyors, Conveyors Tags: Assembled, BT-1 1/2CS, Carbon Steel, Hudson Bearings, Material Handling, Replacement Transfer Ball, Silver

Risk-Free Shopping with Returns
Unbeatable Quality Guaranteed
Shop the Best Quality Online
Your satisfaction is 100% guaranteed.

Hudson Bearings 1-1/2″ Carbon Steel Main Ball with Four Hole Flange Carbon Steel Housing

1-1/2 inch carbon steel main ball rotates on a bed of eighty 1/8 inch support balls. Support cup is hardened and plated. The cover is also hardened and plated to resist rust. Hudson Bearings is an innovative domestic manufacturer of ball transfers. Flange-Mounted units feature a hardened and zinc plated mounting cup and a foam seal. Housing options include stainless steel with option for felt seal. Main and support ball options include stainless, nylon, phenolic, and delrin. Flange mounted transfers can be used in either ball up or down position.

Mounting Bolt Hole Diameter	9/32 in
Weight	1.16 lbs
Ball Width Range	3 in
Ball Diameter	1-1/2 in
Weight Capacity	250 lbs
Bolt Spacing	2-7/16 in
Height	1-13/16 in
Width	3 in
Length	3 in
Assembly Required	Assembled
Type	Replacement Transfer Ball
Color Family	Silver
Material	Carbon Steel
Manufacturers Part Number	BT-1 1/2CS
Housing Material	Carbon Steel
Brand	Hudson Bearings
