Ashland Conveyor Products Ashland Flange Ball Transfer w/Cushion 37824 1-1/2" Dia Carbon Steel Ball 250 Lb
Original price was: $37.95.$26.57Current price is: $26.57.
- Risk-Free Shopping with Returns
- Unbeatable Quality Guaranteed
- Shop the Best Quality Online
- Your satisfaction is 100% guaranteed.

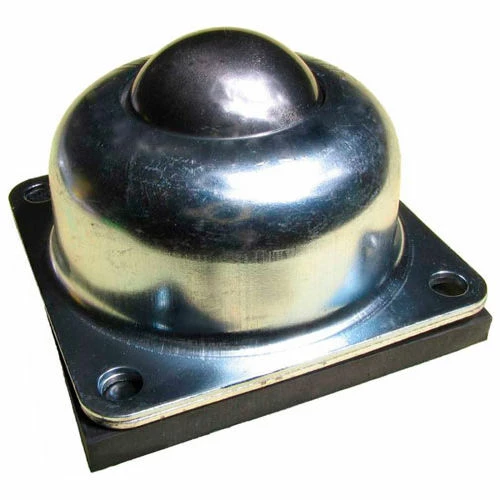

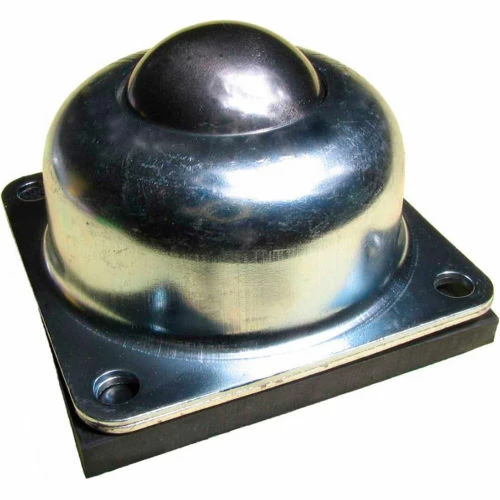

Ashland Conveyor ball transfers allow for change of direction and rotation of tools, dies, fixtures, containers, products, and assemblies. The flange style is a surface mount ball transfer and is available in many sizes, capacities, and materials. Includes neoprene cushion.

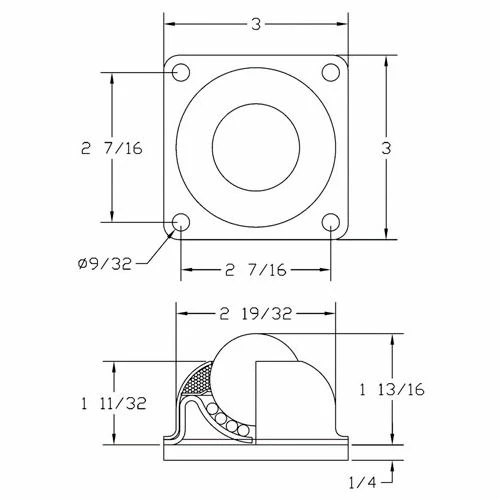

| Mounting Bolt Hole Diameter | 9/32 in |
|---|---|
| Color Family | Silver |
| Brand | Ashland Conveyor Products |
| Cover Material | Carbon Steel |
| Housing Material | Carbon Steel w/Neoprene Cushion |
| Manufacturers Part Number | 37824 |
| Package Quantity | 1 |
| Material | Carbon Steel |
| Style | Flange with Neoprene Cushion |
| Type | Replacement Transfer Ball |
| Weight | 1.4 lbs |
| Assembly Required | Assembled |
| Length | 3 in |
| Width | 3 in |
| Height | 2-1/16 in |
| Bolt Spacing | 2-7/16 in |
| Weight Capacity | 250 lbs |
| Ball Diameter | 1-1/2 in |
| Ball Width Range | 2 in |
| Warranty | 1 yr |
