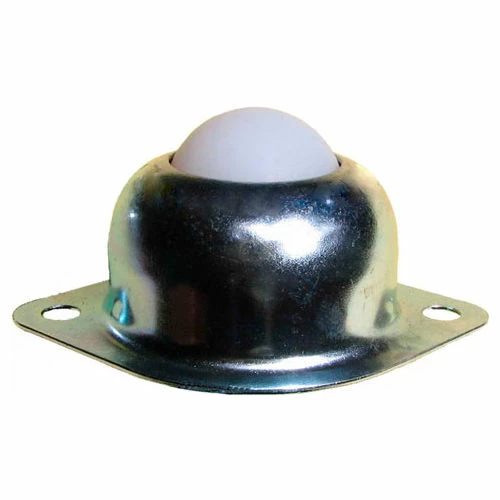

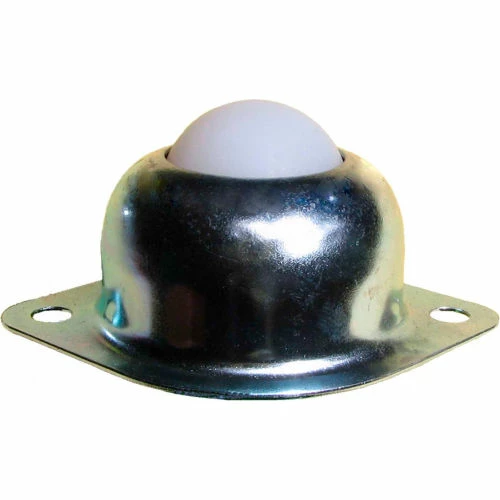

Ashland Conveyor Products Ashland Flange Ball Transfer 22279 – 1" Dia. Nylon Ball 35 Lb.
Original price was: $16.25.$11.38Current price is: $11.38.
- Risk-Free Shopping with Returns
- Unbeatable Quality Guaranteed
- Shop the Best Quality Online
- Your satisfaction is 100% guaranteed.
Ashland Conveyor ball transfers allow for change of direction and rotation of tools, dies, fixtures, containers, products, and assemblies. The flange style is a surface mount ball transfer and is available in many sizes, capacities, and materials. The Nylon ball reduces surface marring.

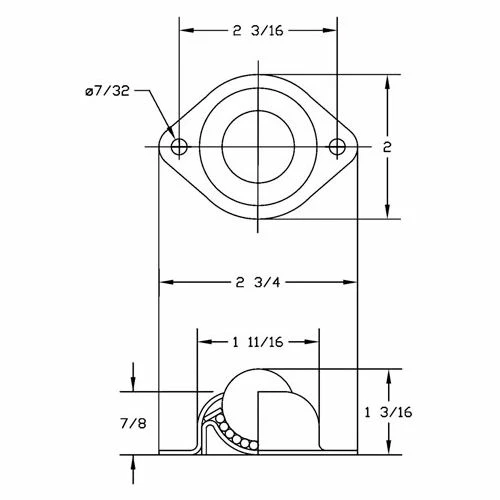

| Mounting Bolt Hole Diameter | 7/32 in |
|---|---|
| Color Family | Silver |
| Brand | Ashland Conveyor Products |
| Cover Material | Carbon Steel |
| Housing Material | Carbon Steel |
| Manufacturers Part Number | 22279 |
| Package Quantity | 1 |
| Material | Nylon |
| Style | Flange |
| Type | Replacement Transfer Ball |
| Weight | 0.2 lbs |
| Assembly Required | Assembled |
| Length | 2-3/4 in |
| Width | 2 in |
| Height | 1-3/16 in |
| Bolt Spacing | 2-3/16 in |
| Weight Capacity | 35 lbs |
| Ball Diameter | 1 in |
| Ball Width Range | 1 in |
| Warranty | 1 yr |
