Ashland Conveyor Products Ashland Countersunk Ball Transfer 48765 1-1/8" Dia. Carbon Steel Ball 180 Lb.
Original price was: $27.95.$19.57Current price is: $19.57.
- Risk-Free Shopping with Returns
- Unbeatable Quality Guaranteed
- Shop the Best Quality Online
- Your satisfaction is 100% guaranteed.

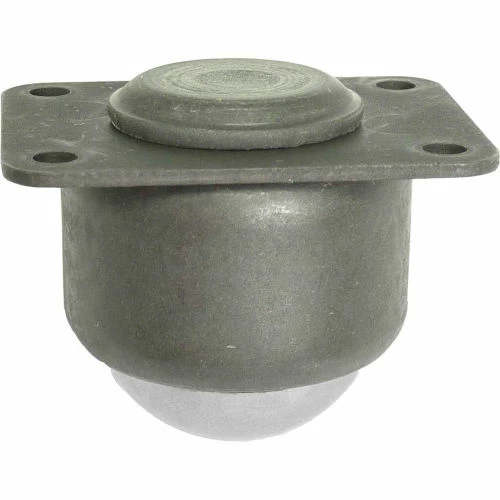

Ashland Conveyor ball transfers allow for change of direction and rotation of tools, dies, fixtures, containers, products, and assemblies. This flange style allows part of the unit to be positioned below the mounting surface.

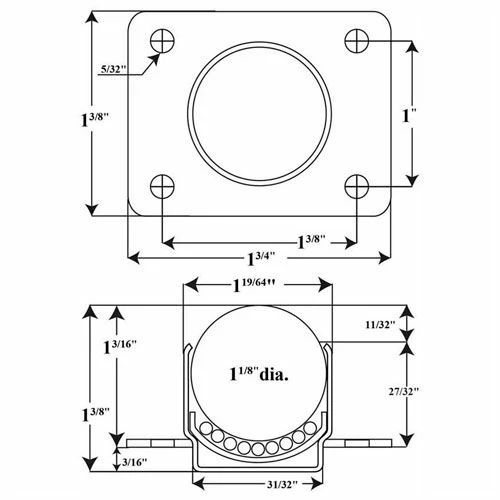

| Mounting Bolt Hole Diameter | 5/32 in |
|---|---|
| Color Family | Black |
| Brand | Ashland Conveyor Products |
| Cover Material | Carbon Steel |
| Housing Material | Carbon Steel |
| Manufacturers Part Number | 48765 |
| Package Quantity | 1 |
| Material | Carbon Steel |
| Style | Countersunk |
| Type | Replacement Transfer Ball |
| Weight | 0.35 lbs |
| Assembly Required | Assembled |
| Length | 1-3/4 in |
| Width | 1-3/8 in |
| Height | 1-3/8 in |
| Bolt Spacing | 1 in |
| Weight Capacity | 180 lbs |
| Ball Diameter | 1-1/8 in |
| Ball Width Range | 2 in |
| Warranty | 1 yr |
