Ashland Conveyor Products Ashland Conveyor 6" Ball Transfer Drop-In Insert Plate 30107 – 36" BF – 3" Ball Centers

Original price was: $159.95.Current price is: $94.99.

SKU: Ashland Conveyor Products WBB1874799 Categories: Ball Transfer Conveyors, Conveyors Tags: 30107, Ashland Conveyor Products, Assembled, Bolts into Side Frames, Drop-In Insert Plate, Galvanized Steel, Material Handling

Risk-Free Shopping with Returns
Unbeatable Quality Guaranteed
Shop the Best Quality Online
Your satisfaction is 100% guaranteed.

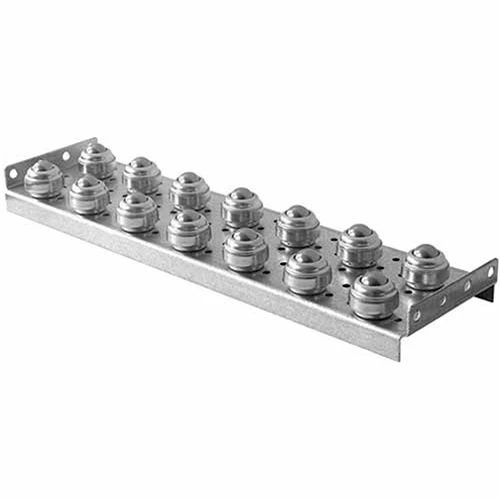

Ashland Conveyor Ball Transfer Conveyor Drop-In Insert Plate with 3″ Centers – 75 Lb. Cap.

For existing conveyors, the drop-in insert plate design allows for the removal of rollers and ball assembly insert plates to be “dropped-in” and bolted, applies to 1.9″ & 1-3/8″ roller conveyors. Ball capacity of 75 lbs. each.

Weight	18 lbs
Mounting Location	Bolts into Side Frames
Conveyor Section	Ball Transfer Insert
Package Quantity	1
Description	Ball Transfer Drop-In Conveyor Plate
Capacity	125 Lbs.
Style	Ball Transfer Conveyor Drop-In Plate
Frame Type	12 Ga. Galvanized Channel
Color Family	Silver
Type	Drop-In Insert Plate
Brand	Ashland Conveyor Products
Manufacturers Part Number	30107
Material	Galvanized Steel
Assembly Required	Assembled
Ball Diameter	1 in
Length	5-7/8 in
Width	36 in
Height	2-3/8 in
Bolt Spacing	1-1/2 in
Compatible with Conveyor Frame Size	Ashland 2-1/2" x 1" Skatewheel & Roller Conveyor; 3-1/2" x 1-3/8" Roller Conveyo
Between Frame Width	36 in
Ball Width Range	1 in
Ball Center	3 in
Mounting Bolt Hole Diameter	ø 13/32 x 3/4 in
Gauge	12
Weight Capacity	75 lbs
Warranty	1 yr
