Ashland Conveyor Products Ashland Conveyor 5′ Ball Transfer Conveyor Table 48583 – 10" BF – 4" Ball Centers

Original price was: $567.00.Current price is: $93.99.

SKU: Ashland Conveyor Products WBB1874807 Categories: Ball Transfer Conveyors, Conveyors Tags: 48583, Ashland Conveyor Products, Assembled, Ball Transfer Table, Material Handling, Silver, Steel

Risk-Free Shopping with Returns
Unbeatable Quality Guaranteed
Shop the Best Quality Online
Your satisfaction is 100% guaranteed.

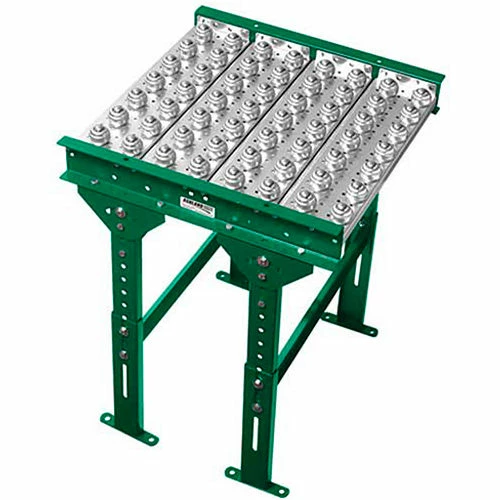

Ashland Conveyor 5′ Ball Transfer Conveyor Table with 4″ Center – 75 Lb. Cap.

Ball transfer units are used where product must change direction or at an intersection of two conveyors. Table assemblies are designed to match-up with 1.9″ diameter roller conveyor frames. Ball capacity of 75 lbs. each.

Weight	100 lbs
Material	Steel
Conveyor Section	Straight
Package Quantity	1
Description	Ball Transfer Table
Capacity	120 Lbs./Ft. on 10' Support Centers; 600 Lbs./Ft. On 5' Support Centers
Style	Ball Transfer Conveyor Table
Frame Type	11 Ga. Painted Steel w/12 Ga. Galvanized Steel Inserts
Color Family	Silver
Type	Ball Transfer Table
Brand	Ashland Conveyor Products
Manufacturers Part Number	48583
Assembly Required	Assembled
Ball Diameter	1 in
Length	5 ft
Width	12-3/4 in
Height	3-13/16 in
Bolt Spacing	1-1/2 in
Compatible with Conveyor Frame Size	Ashland 3-1/2" x 1-3/8" Roller Conveyor
Between Frame Width	10 in
Ball Center	4 in
Mounting Bolt Hole Diameter	ø 7/16 x 5/8 in
Gauge	11
Weight Capacity	75 lbs
Warranty	1 yr
