Ball transfer units are used where product must change direction or at an intersection of two conveyors. Table assemblies are designed to match-up with 1.9″ diameter roller conveyor frames. Ball capacity of 75 lbs. each.

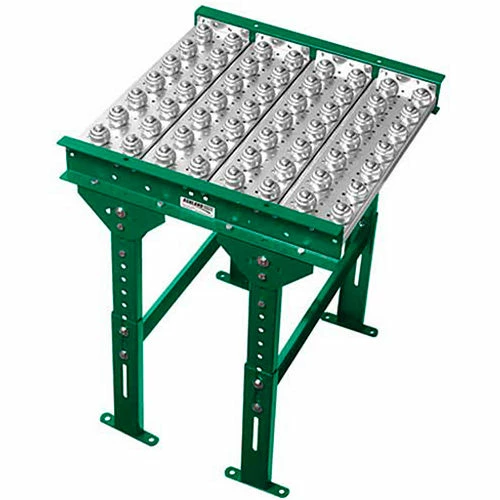

Ashland Conveyor Products Ashland Conveyor 2′ Ball Transfer Conveyor Table 30404 – 16" BF – 4" Ball Centers
$313.95 Original price was: $313.95.$91.99Current price is: $91.99.
- Risk-Free Shopping with Returns
- Unbeatable Quality Guaranteed
- Shop the Best Quality Online
- Your satisfaction is 100% guaranteed.

| Weight | 52 lbs |
|---|---|
| Material | Steel |
| Conveyor Section | Straight |
| Package Quantity | 1 |
| Description | Ball Transfer Table |
| Capacity | 120 Lbs./Ft. on 10' Support Centers; 600 Lbs./Ft. On 5' Support Centers |
| Style | Ball Transfer Conveyor Table |
| Frame Type | 11 Ga. Painted Steel w/12 Ga. Galvanized Steel Inserts |
| Color Family | Silver |
| Type | Ball Transfer Table |
| Brand | Ashland Conveyor Products |
| Manufacturers Part Number | 30404 |
| Assembly Required | Assembled |
| Ball Diameter | 1 in |
| Length | 2 ft |
| Width | 18-3/4 in |
| Height | 3-13/16 in |
| Bolt Spacing | 1-1/2 in |
| Compatible with Conveyor Frame Size | Ashland 3-1/2" x 1-3/8" Roller Conveyor |
| Between Frame Width | 16 in |
| Ball Center | 4 in |
| Mounting Bolt Hole Diameter | ø 7/16 x 5/8 in |
| Gauge | 11 |
| Weight Capacity | 75 lbs |
| Warranty | 1 yr |
