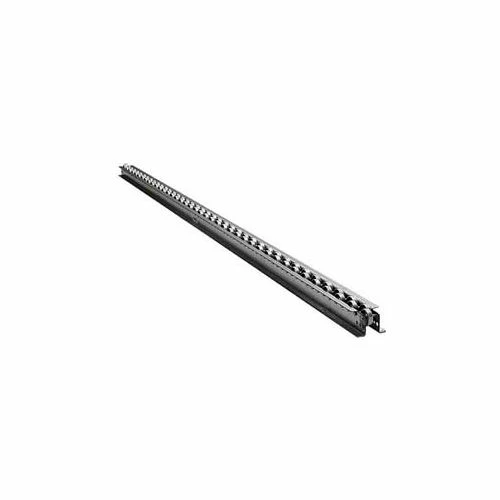

Ashland Conveyor Products Ashland 5′ Straight Flow Rail 39063 – C-Channel – 3-5/8" OAW – 8 WPF – 1-1/2" Axle Centers

Original price was: $144.95.Current price is: $96.99.

SKU: Ashland Conveyor Products WBB730146 Categories: Conveyors, Skate Wheel Conveyors Tags: 8, Ashland Conveyor Products, Assembled, C-Channel, Flow Rail, Flow Rail Skate Wheel, Material Handling, Silver

Risk-Free Shopping with Returns
Unbeatable Quality Guaranteed
Shop the Best Quality Online
Your satisfaction is 100% guaranteed.

Ashland 5′ Straight Flow Rail 39063 – C-Channel – 3-5/8″ OAW – 8 WPF – 1-1/2″ Axle Centers

Ashland Conveyor Products produces several models of flow rails with skatewheels. Skatewheel flow rail is well suited for storage flow racks. For pallet flow 100 Lb. capacity wheels are recommended.

Construction:

1″ x 2-1/2″ x 1″ 12 ga galvanized steel frames.
Inline wheels are on 3″ centers and staggered wheels are on 1-1/2″ centers.

Capacities:

Wheels are 1-15/16″ diameter with ¼” bore and have either 75 Lb or 100 Lb capacity.
FR4 flow rail capacities (evenly distributed non-impact load):
- 36 lbs. per foot with supports on 10′ centers.
- 260 lbs. per foot with supports on 5′ centers.

Skate Wheel Diameter	1-15/16 in
Frame Type	C-Channel
Brand	Ashland Conveyor Products
Conveyor Section	Straight
Manufacturers Part Number	39063
Package Quantity	1
Description	Wheels In Line
Material	Galvanized Steel
Capacity	260 Lbs./Ft. on 5' Support Centers
Wheels per Conveyor	40
Style	Flow Rail Skate Wheel
Wheels per Foot	8
Weight	27 lbs
Color Family	Silver
Type	Flow Rail
Assembly Required	Assembled
Length	5 ft
Width	3-5/8 in
Height	3-1/32 in
Axle Center	1-1/2 in
Weight Capacity	100 per Wheel
Between Frame Width	1-5/8 in
Warranty	1 yr
