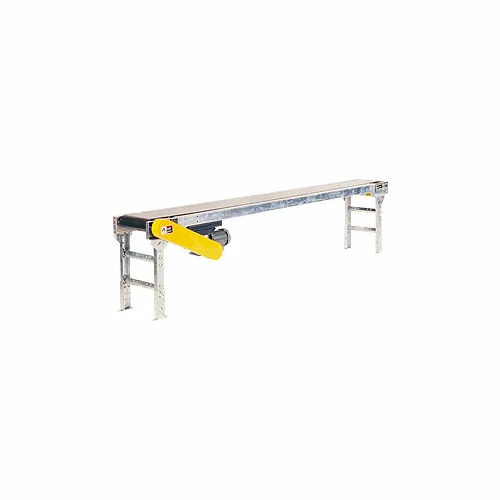

1 Horsepower Upgrade for Omni Metalcraft Belt Conveyor

Original price was: $223.95.Current price is: $91.99.

SKU: Omni Metalcraft WB158922 Categories: Belt Conveyors, Conveyors Tags: 1 HP, 115/230 V, 12"W Belt = 740 lbs; 20" & 24"W Belt = 640 lbs, Accessory, Assembled, Material Handling, Omni Metalcraft

Risk-Free Shopping with Returns
Unbeatable Quality Guaranteed
Shop the Best Quality Online
Your satisfaction is 100% guaranteed.

OPTIONAL 1 HP UPGRADE FOR Omni Metalcraft POWER BELT CONVEYOR

Totally enclosed 1 HP, 115/230V, 60 Hz single phase motor. Includes 8 ft. power cord and on/off switch for 115V use. Quality features include crowned and fully lagged 4″ drive and tail pulleys with 1-3/16″ dia. shafts. 60 FPM.

Allows for higher conveyor load capacities than with the standard 1/2 HP motor.

NOTE: This is a Horsepower upgrade to the standard 1/2 HP Motor. It is not a standalone Motor and must be purchased with a Conveyor that it will be applied to.

12″W Belt = 740 cap. lbs.
20-24″W Belt = 640 cap. lbs.

Load Capacity Lbs. Uniformly Distributed Over Length
Horsepower	12″W Belt	20″ – 24″W Belt
1/2 (Standard)	250	160
3/4 (Optional)	500	390
1 (Optional)	740	640
1-1/2 (Optional)	1230	1090
2 (Optional)	1680	1580

Drive Pulley Diameter	4 in
Weight	12 lbs
Assembly Required	Assembled
Type	Accessory
Horsepower	1 HP
Capacity	12"W Belt = 740 lbs; 20" & 24"W Belt = 640 lbs
Voltage	115/230 V
Manufacturers Part Number	1 HP
Brand	Omni Metalcraft
